# スイッチ

接続の問題をトラブルシューティングするには、スイッチのローカルGUIにログインしてください

### KOKOMO-SスイッチのローカルGUIへのログイン <a href="#login-to-the-kokomo-s-switch-local-access-page" id="login-to-the-kokomo-s-switch-local-access-page"></a>

スイッチのデフォルトIPアドレス設定はDHCPクライアントモードで、DHCPサーバーからIPアドレスを取得します。起動後2分以内にDHCPサーバーからIPアドレスを取得できない場合は、自動的に静的IPアドレスの割り当てに切り替わります。

スイッチがローカルDHCPサーバーからIPアドレスを取得できない場合や、静的IPアドレスを使用したい場合は、以下の手順で静的IPアドレスを使ってPCをスイッチに接続できます。

#### PCでのIPアドレス設定： <a href="#ip-address-configuration-on-your-computer" id="ip-address-configuration-on-your-computer"></a>

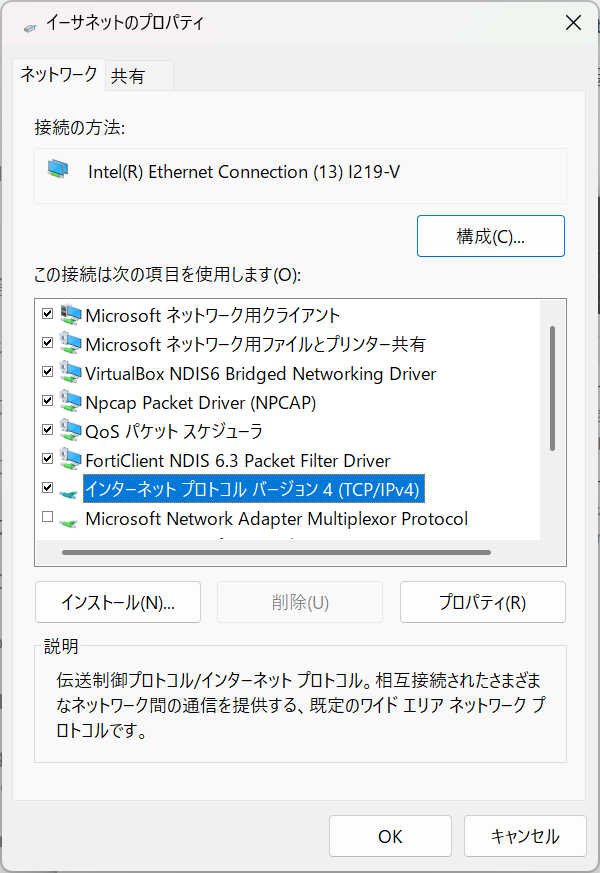

1. PCの電源を入れたら、ネットワークアダプターの設定を行います。以下を開いてください。\
   「**ネットワーク接続**」＞「**ローカルエリア接続**」＞「**インターネットプロトコル バージョン4 (TCP/IPv4)**」＞「**プロパティ**」

<figure><img src="https://content.gitbook.com/content/bfLoOUlAYk2azveIBSIY/blobs/4vI6UxkQ8mServ4I1N6e/image.png" alt="" width="300"><figcaption></figcaption></figure>

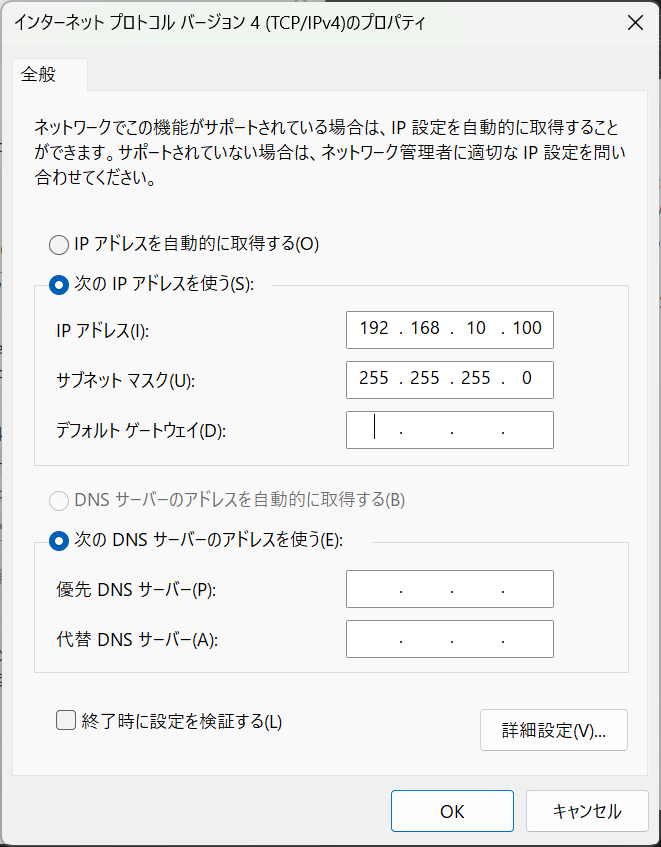

2. 「**次のIPアドレスを使う**」を選択し、以下の値を入力します：

* **IPアドレス**：`192.168.10.100`（または`192.168.10.x`ネットワーク内のゲートウェイ以外の任意のアドレス）
* **サブネットマスク**：`255.255.255.0`

<figure><img src="https://content.gitbook.com/content/bfLoOUlAYk2azveIBSIY/blobs/8s5AMPfw6TdKLyha31Q4/image.png" alt="" width="331"><figcaption></figcaption></figure>

{% hint style="warning" %}
デフォルトでKOKOMO-Sスイッチに割り当てられる静的IPアドレスは「`192.168.10.239`」です。PCに設定するIPアドレスは`192.168.10.239`以外を選択してください。
{% endhint %}

#### KOKOMO-Sスイッチへのログイン <a href="#login-to-kokomo-s-switch" id="login-to-kokomo-s-switch"></a>

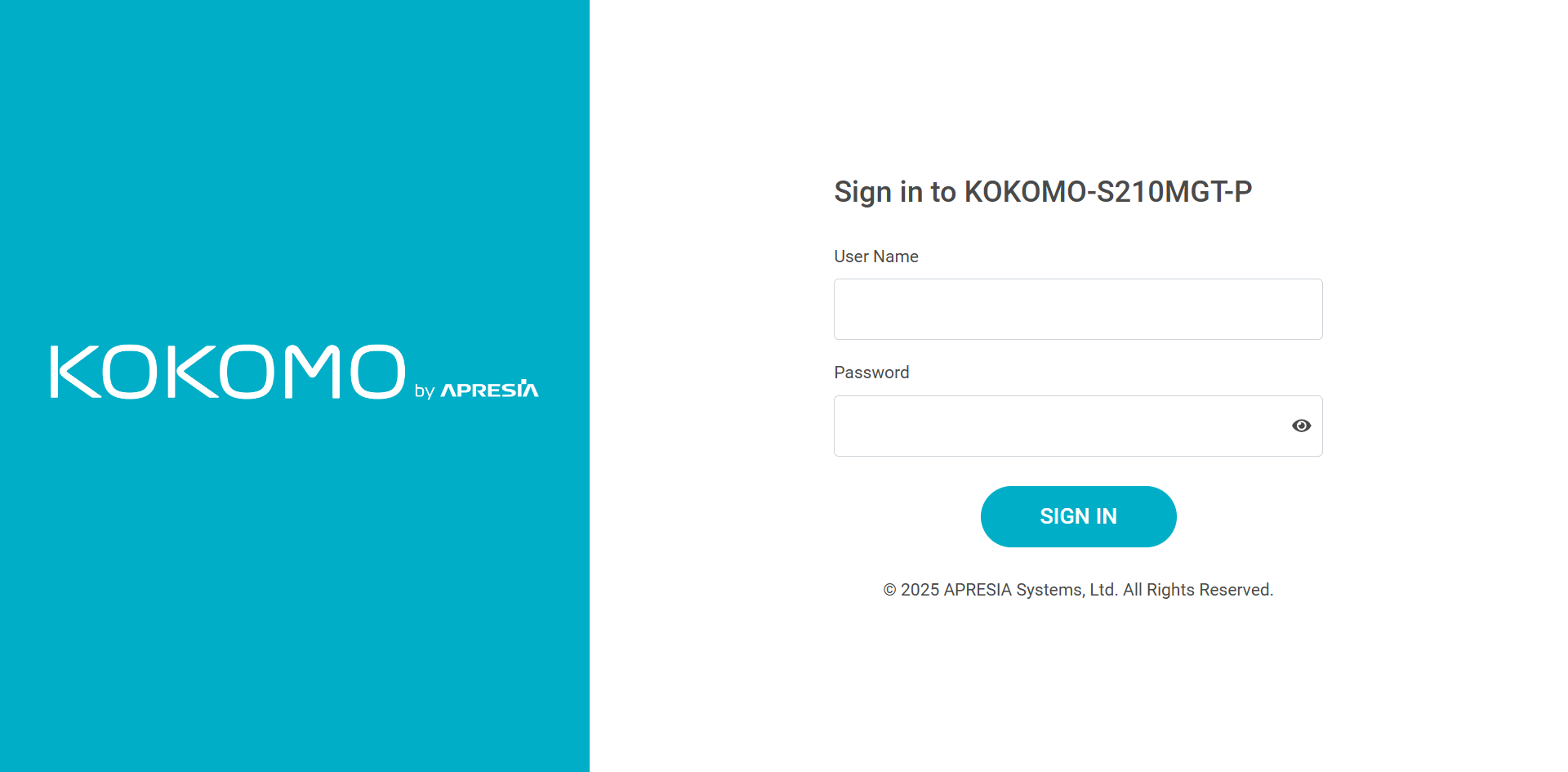

1. PCでWebブラウザを開きます。アドレスバーにKOKOMO-SスイッチのIPアドレス（`192.168.10.239`）を入力してEnterキーを押します。
2. デフォルトのユーザー名は **`adpro`** 、パスワードは **`kokomo`** です。***これらは速やかに変更することを強く推奨します*****。**&#x30B9;イッチのユーザー名とパスワードを入力し、「**SIGN IN**」をクリックします。

<figure><img src="https://content.gitbook.com/content/bfLoOUlAYk2azveIBSIY/blobs/HVoJiLaiFLL3hb3oOAVT/image.png" alt="" width="563"><figcaption><p>*Webブラウザ上で表示されるモデル番号はモデルにより異なります。</p></figcaption></figure>

{% hint style="info" %}
初回ログイン時にはパスワード変更を促す画面が表示されます。初期パスワード `kokomo` でログイン可能ですが、変更しない場合には次回ログイン時もパスワード変更画面が表示されます。
{% endhint %}

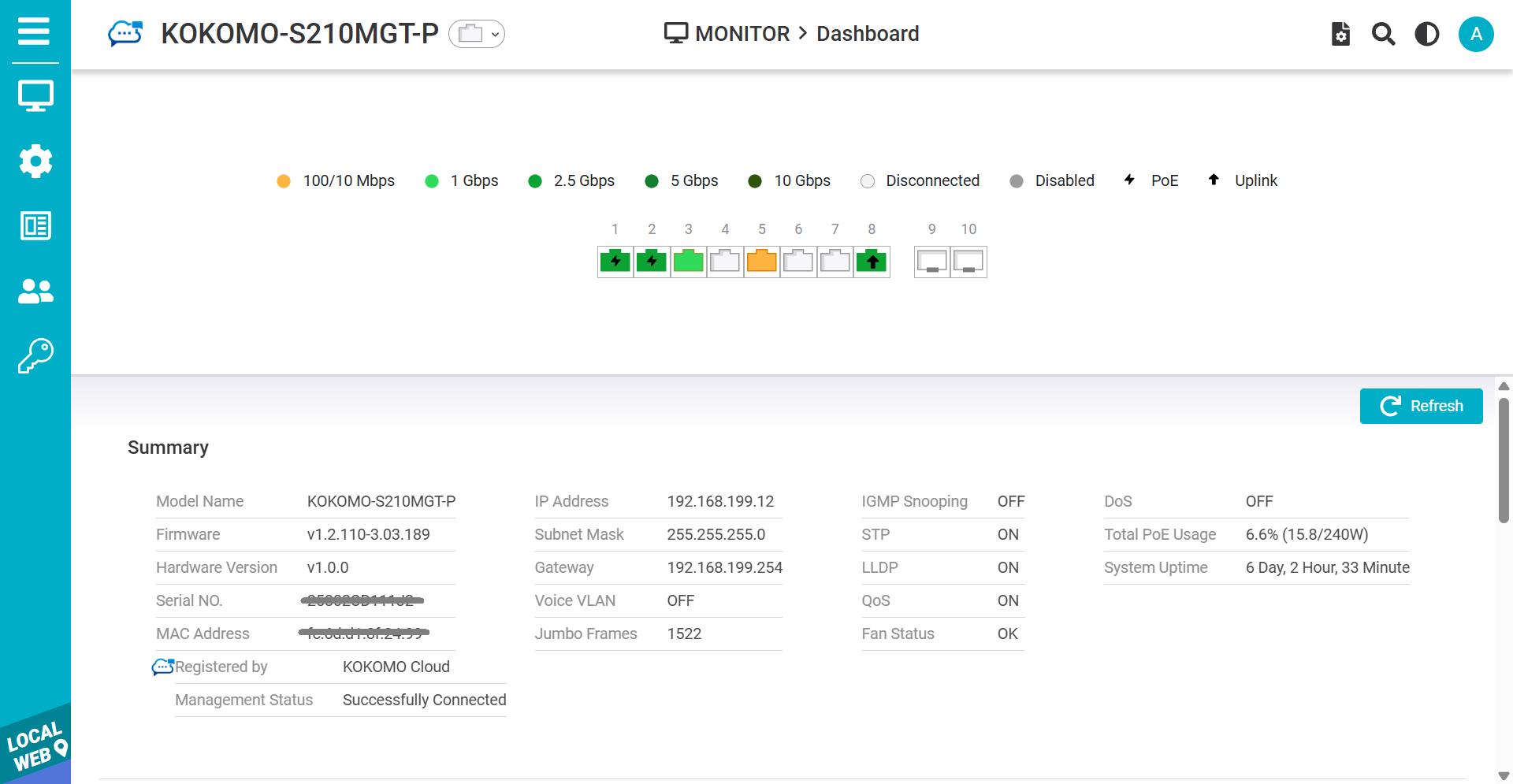

3. KOKOMO-SスイッチのローカルGUIが表示されます。**ダッシュボード**の情報を確認してください。不具合が発生した場合はお問い合わせください。

<figure><img src="https://content.gitbook.com/content/bfLoOUlAYk2azveIBSIY/blobs/C2tVOYKemk6uxtFUnskM/image.png" alt=""><figcaption><p>*Webブラウザ上で表示されるモデル番号はモデルにより異なります。</p></figcaption></figure>

{% hint style="info" %}

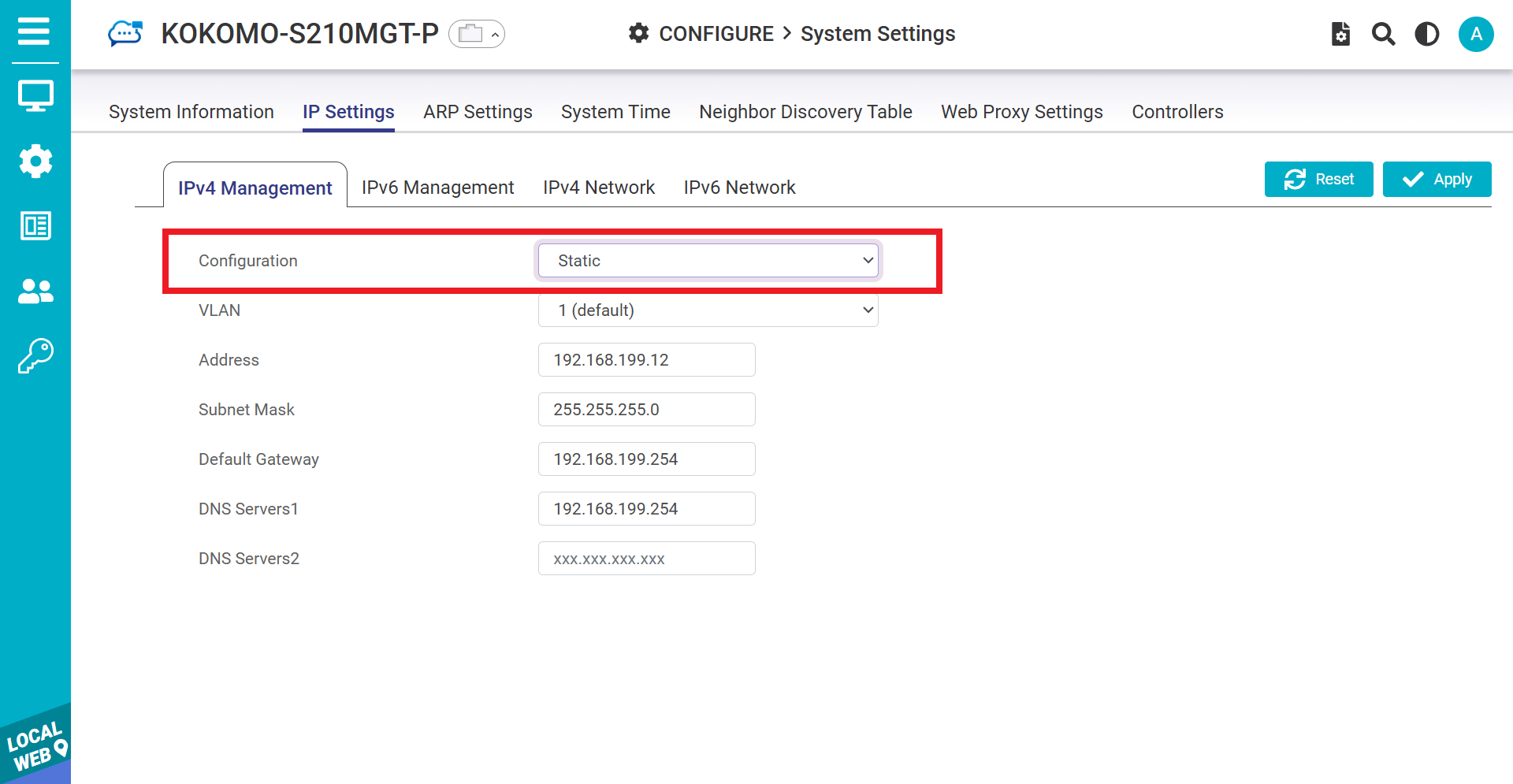

IP割り当て設定の変更

デフォルトでは、KOKOMO Cloudスイッチ（KOKOMO-Sシリーズ）はDHCPサーバーによって動的にIPアドレスが割り当てられます。IPアドレスの割り当てに問題がある場合は、IPアドレス、サブネットマスク、ゲートウェイ、DNS、および管理 VLANを含むIP 設定を再確認してください。問題が解決しない場合は、「***DHCP***」から「***Static***」へのIP 割り当てを以下の手順で変更できます。

1. ***Configure > System Settings > IP Settings*** セクションに移動します。
2. 設定を「***Static***」に変更します。
3. ***IPアドレス、ゲートウェイ、サブネットマスク、および DNS*** 設定を構成します。
4. LANネットワークにこのスイッチを再接続して、もう一度試してください。

   <figure><img src="https://content.gitbook.com/content/bfLoOUlAYk2azveIBSIY/blobs/MfeBuBEVJxQAxBounKFv/image.png" alt=""><figcaption><p>*表示される型番はモデルによって異なります。</p></figcaption></figure>

{% endhint %}

{% hint style="info" %}
クラウドに登録済みの場合、ローカルGUIでIP割り当て設定を確認するには、クラウドに登録されている当該スイッチのシステム設定で「**ローカルGUI設定の解除**」を有効にする必要があります。
{% endhint %}


---
