# KOKOMO-W222BE-IS

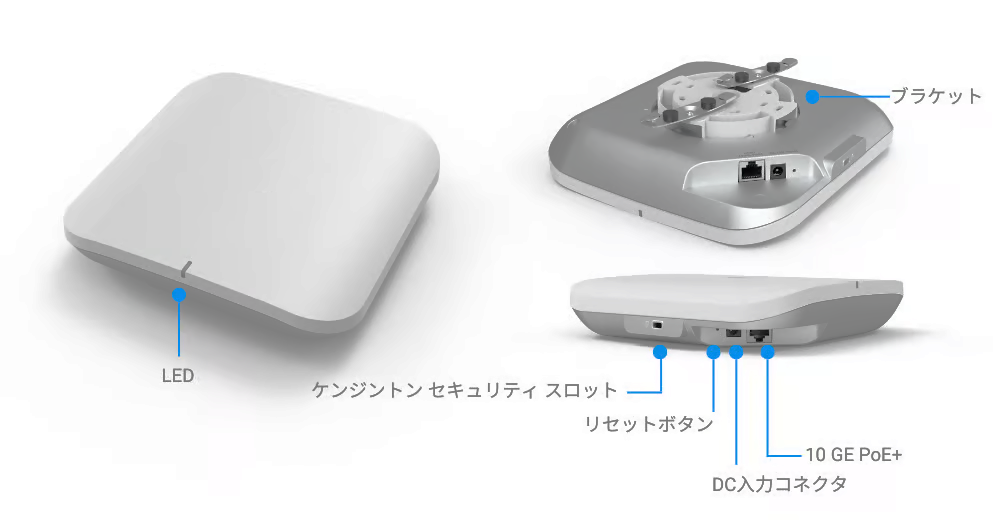

## 各部名称と機能 <a href="#w222be-is-function" id="w222be-is-function"></a>

<figure><img src="/files/oLnrL3q9KqPWVbRUBitg" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}

#### リセットボタン&#x20;

* 工場出荷時のデフォルトにリセットするには、リセットボタンを **10 秒以上**押し続けてください。 **LED**&#x304C;*<mark style="background-color:orange;">高速点滅</mark>*（0.2 秒間隔）を開始します。その後、デバイスは工場出荷時のデフォルト設定にリセットされます。
  {% endhint %}

{% hint style="info" %}
本装置は、1つのLEDインジケーターを搭載しており、表示される色とパターンで各ステータスを表します。
{% endhint %}

## LED <a href="#w222be-is-led" id="w222be-is-led"></a>

LEDインジケーターの表示パターンとステータスを下表に示します。

<table><thead><tr><th width="104" valign="top">LED / 色</th><th width="289" valign="top">LEDの動作</th><th width="338">ステータス</th></tr></thead><tbody><tr><td valign="top">橙</td><td valign="top">点滅(0.5秒間隔)</td><td>KOKOMOクラウド接続中</td></tr><tr><td valign="top">青</td><td valign="top">点灯(5秒)</td><td>KOKOMOクラウド接続済み</td></tr><tr><td valign="top"></td><td valign="top">点滅(0.5秒) ⇔ 白色点滅(0.5秒)</td><td>ファームウェアアップグレード</td></tr><tr><td valign="top"></td><td valign="top">高速点滅(0.2秒)</td><td>初期化中</td></tr><tr><td valign="top"></td><td valign="top">点滅(3秒)</td><td>LAN接続済み</td></tr><tr><td valign="top"></td><td valign="top">点滅(1.5秒on ⇒ 0.5秒off)</td><td>AP位置特定モード</td></tr><tr><td valign="top">黄</td><td valign="top">点滅(3秒)</td><td>2.4GHz無線 On </td></tr><tr><td valign="top">緑</td><td valign="top">点滅(3秒)</td><td>5GHz無線 On </td></tr><tr><td valign="top">紫</td><td valign="top">点滅(3秒)</td><td>6GHz無線 On </td></tr></tbody></table>


---
