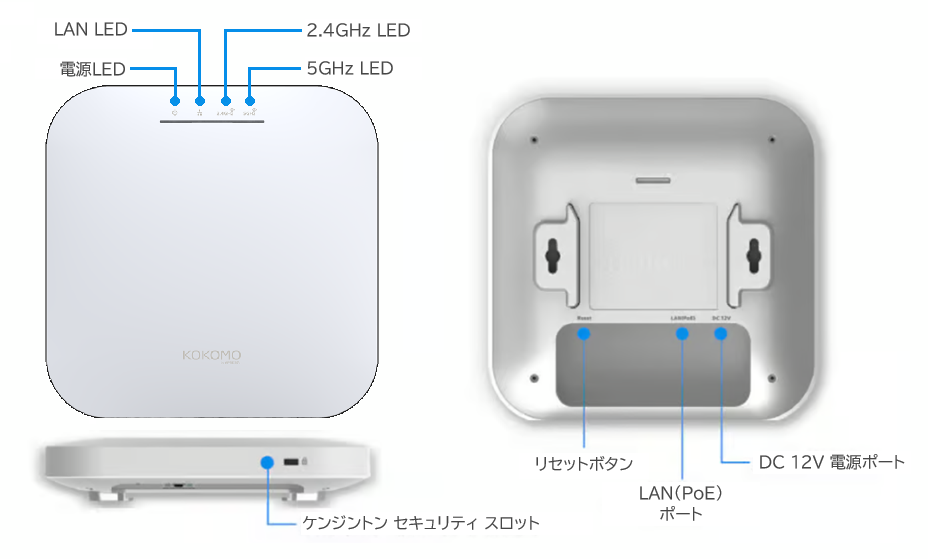

> For the complete documentation index, see [llms.txt](https://docs.lan.kokomocloud.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.lan.kokomocloud.com/quick-start-guide/wireless-access-point/kokomo-w220ax-is.md). # KOKOMO-W220AX-IS ## 各部名称と機能
{% hint style="info" %} #### リセットボタン * 工場出荷時のデフォルトにリセットするには、リセットボタンを **10秒以上** 押し続けてください。**電源LED**が*高速で点滅*（0.2秒間隔）を開始します。その後、デバイスは工場出荷時のデフォルト設定にリセットされます。 {% endhint %} {% hint style="info" %} 本装置は、**電源、LAN、2.4GHz、5GHz** の4つのLEDインジケーターを搭載しています。 {% endhint %} ## LED 各4つのLEDインジケーターの表示パターンとステータスを下表に示します。
LED / 色LEDの動作ステータス
電源(橙)点灯 / 消灯電源 On/Off
点滅(0.5秒間隔)KOKOMOクラウド接続中
点灯KOKOMOクラウド接続済み
点滅KOKOMOクラウド未接続
点滅(1.5秒On ⇒ 0.5秒Off ⇒ 8分間)メッシュ自動ペアリング
高速点滅(0.2秒間隔)初期化中
LAN(青)消灯LAN未接続
点灯LAN接続済み
点滅LANデータ送信中
点滅(0.5秒間隔)メッシュバックホール良好
1秒間に2回点滅メッシュバックホール弱
2.4GHz(青)点灯2.4GHz無線 On
点滅2.4GHzデータ送信中
5GHz(青)点灯5GHz無線 On
点滅5GHzデータ送信中
電源(橙) / LAN(青) / 2.4GHz(青) / 5GHz(青)点滅（0.5秒間隔）ファームウェアアップグレード中
点滅（1.5秒On ⇒ 0.5秒Off ⇒ 10秒間）AP位置特定モード
