# VLANの設定

この設定により、ネットワーク内の全デバイスにVLANを一括設定できます。表には選択したネットワークで設定済みのVLANが表示されます。

この画面でネットワークのVLAN追加と削除を行います。

「**設定**」＞「**VLAN**」をクリックしてこの画面にアクセスします。

<figure><img src="https://content.gitbook.com/content/UGo1fJsX7itL1XTQMLx9/blobs/UvoIXBnIXc5Kxxpz2TKh/image.png" alt=""><figcaption></figcaption></figure>

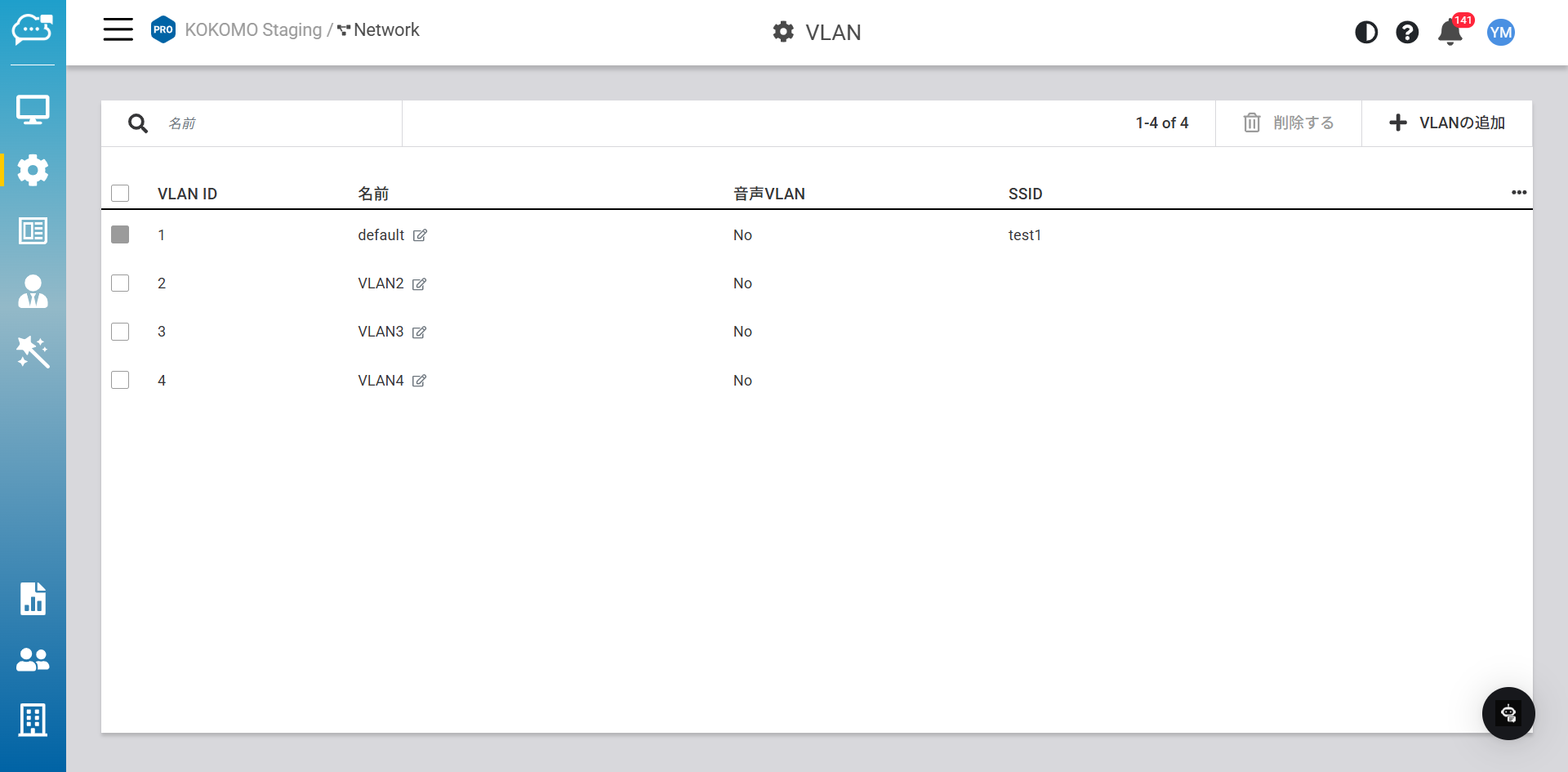

VLAN設定のページには以下の情報が含まれます。

* **VLAN ID**：VLANのID。
* **名前**：VLAN名。
* **音声VLAN**：VLANが音声VLANとして割り当てられているかどうかを表示します。
* **SSID**：VLANが割り当てられているSSID。

{% hint style="info" %}
VLAN ID は 1～4094 の範囲で設定し、最大で 4094 個 作成することが可能です。
{% endhint %}

## VLANの追加 <a href="#add-vlan" id="add-vlan"></a>

<figure><img src="https://content.gitbook.com/content/UGo1fJsX7itL1XTQMLx9/blobs/TIp2lRcnfVuEYBMSx0Zh/image.png" alt="" width="506"><figcaption></figcaption></figure>

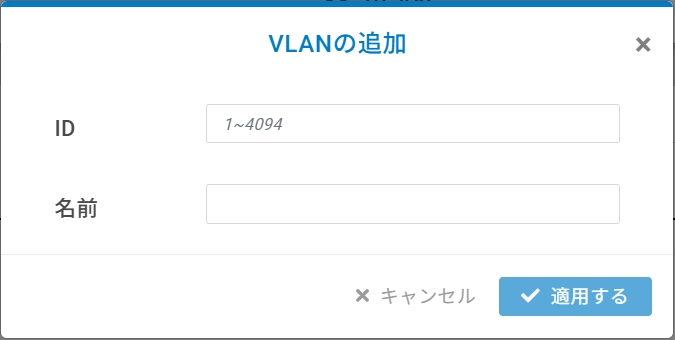

1. 「**VLANの追加**」ボタンをクリックします。
2. 「**ID**」と「**名前**」を入力します。
3. 「**適用する**」をクリックして設定を完了します。

{% hint style="info" %}
ネットワーク全体のVLANを作成した後は、スイッチ詳細ページでポート割り当て、またはSSIDページで特定のSSIDへのVLAN割り当てを行ってください。
{% endhint %}


---
